Quectel Wi-Fi 6/Bluetooth 5.3 modules for smart and industrial IoT applications

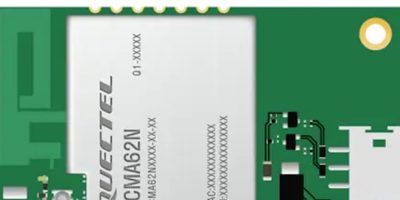

Mouser is now shipping the new FCMA62N Wi-Fi 6/Bluetooth 5.3 modules from Quectel. The FCMA62N modules boast an ultra-compact LCC form factor (38.3mm × 21.6mm × 4.75mm), with multiple low-power consumption modes and custom features that provide flexibility and versatility for smart homes, industrial IoT, automotive, and medical device applications.
The Quectel FCMA62N modules are optimised for size and cost savings with an integrated, high-performance Arm® Cortex®-M33 processor running up to 260MHz. These devices support the IEEE 802.11a/b/g/n/ac/ax Wi-Fi protocol and Bluetooth Low Energy (BLE) 5.3. The modules feature built-in 1.2MB SRAM and 8MB flash, ensuring efficient performance that complies with WPA-PSK, WPA2-PSK, and WPA3-SAE security standards with an AES-128 encryption algorithm.
The FCMA62N modules support UART, SWD, and GPIO interfaces (by default), as well as SPI, I2C, I2S, and PWM interfaces in Quectel’s QuecOpen solutions. QuecOpen is a development platform that enables Quectel IoT modules to act as the main processor for an IoT device, allowing customers to program their own applications alongside the module’s standard processes. The FCMA62N modules support both the QuecOpen solution and standard AT commands with a compact protocol that enhances user product development.
The FCMA62N modules are supported by the FCMA62NABTB-0P-08 and FCMA62NABTB-1X-08 evaluation boards. The evaluation boards each feature a pre-mounted FCMA62N module, debugger, and PCB antenna.
