Alliance Memory combines NAND flash and eMMC controller in FPGA package

Fri, Jul 07, 2023

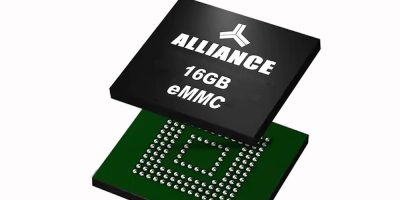

Compliant With JEDEC eMMC v5.1, the ASFC16G31M-51BIN integrates NAND flash memory with an eMMC controller and flash transition layer (FTL) management software in a single 11.5 mm by 13 mm 153-ball FBGA package. The 16Gbyte industrial grade device is available from Alliance Memory.

The device for solid-state storage in consumer, industrial, and networking applications features boot operation, replay protected memory block (RPMB), device health report, field firmware updates, power-off notification, enhanced strobe features for faster and more reliable operation, write levelling, high-priority interrupt (HPI), secure trim / erase and high-speed HS200 and HS400 modes. The ASFC16G31M-51BIN is also backwards-compatible with eMMC v4.5 and v5.0.

The eMMC can be used in smart watches, tablets, digital TVs, set-top boxes, VR and AR headsets, digital cameras, CCTV, surveillance, automation, PoS systems and emerging embedded applications. According to Alliance Memory, the ASFC16G31M-51BIN simplifies designs for fast and easy system integration in these products, speeding up product development and time to market. It also saves valuable space by eliminating the need for an external controller. The FTL software provides high reliability and stable performance with wear levelling and bad block management, the company added.

The ASFC16G31M-51BIN operates over an industrial temperature range of -40 to +85 degrees C and offers programmable bus widths of x1, x4, and x8. The device’s NAND memory with internal LDO can be powered with a single 3V supply voltage, while the controller can be powered by 1.8 or 3V dual supply voltages.

Samples of the eMMC are available now. Production quantities are available with lead times of 8 to 10 weeks.

David Bagby, Alliance Memory’s president and CEO confirmed that eMMCs are a new focus product for the company. “We are making a significant investment in this product portfolio, and with further, higher-density additions we’ll be launching in Q3 2023, Alliance Memory is set to become one of the leading providers of eMMC technology,” he predicted.

http://www.alliancememory.com

> Read More

Impulse Embedded introduces Vecow’s workstation for rail and AIoT

Thu, Jul 06, 2023

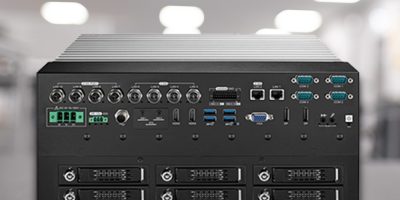

The IVX-1000 is a rugged in-vehicle computing workstation by Vecow. It is designed for railway and AIoT (AI of things) / industry 4.0 applications and is available from Impulse Embedded.

The updated workstation is powered by the latest Intel 13th Gen Core i9, i7, i5, and i3 processors and has a wide, 16V to 160V DC input with 500V surge protection. The EN50155-compliant system can be used for AI-enabled in-vehicle applications such as ADAS (advanced driver assistance systems), public safety and mobile communications as well as AIoT / Industry 4.0 applications.

The IVX-1000 has an LGA1700 CPU socket that can support Intel’s 13th and 12th Gen Core processors, (code names Alder Lake and Raptor Lake) including the high-performance 24 Core i9-13900E processor. This is a mixed core CPU, with eight Performance (P) hyper-threaded cores and eight Efficient (E) cores. The E cores can focus on background tasks, whilst the P cores run the more demanding applications uninterrupted. The IVX-1000 also features two DDR5 SO-DIMM slots supporting up to 64Gbyte of 4800MHz DDR5 memory.

There is a variety of high speed I/O such as four 10Gbits per second USB3.2 Gen2 ports and nine 2.5G Network ports, supporting TSN (time sensitive networking), for high speed edge communication standards. This allows critical information to be transmitted and acted on in real time.

Eight of these ports feature X-coded M12 connectors to maintain and secure connection in high vibration areas. Four of the M12 ports offer PoE+, with 25.5W / 48V per port power for use with IP cameras and other PoE powered devices, advised Impulse Embedded.

There is also an M.2 3042 B-key socket, suitable for 5G modules, one M.2 2230 E-key for Wi-Fi, and one mini PCIe slot for expansion modules. Quad display output is also standard, via two DisplayPort outputs and two HDMI ports.

For storage, there are two SATA III ports, one mSATA connector, and one M.2. 2280 M-key (PCIe x4) socket. Some models offer removable storage via easy to access front mount caddies.

https://www.impulse-embedded.co.uk/

> Read More

FlightSense multi-zone distance sensor has camera-like field of view

Thu, Jul 06, 2023

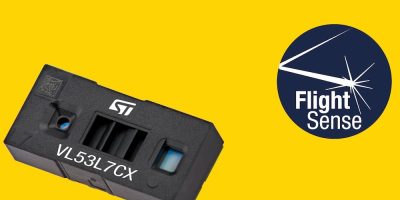

STMicroelectronics has identified that sensors bring lifelike situational awareness to numerous types of smart equipment. It has released its latest FlightSense multi-zone distance sensor with what it claimed is an industry-best 90 degree field of view to enhance privacy-protected multi-zone ranging, object detection and scene mapping.

The field of view is 33 per cent larger than the previous generation, said the company. The optical sensors bring situational awareness to applications like home automation, domestic appliances, computers, robots, and smart equipment used in stores, factories.

Unlike camera sensors, which are sometimes positioned for these tasks, Time-of-Flight (ToF) sensors like ST’s new VL53L7CX announced today do not capture images and thus ensure full privacy for users. The VL53L7CX extends the field of view to an unprecedented 90° (diagonal) for enhanced peripheral sensing, almost equivalent to that of a camera. This enhances the performance of presence detection and system activation, such as activating a screen or waking an appliance like an oven or coffee machine.

ST’s FlightSense multi-zone sensors have powerful capabilities including 3D scene mapping and simultaneously measuring distance to multiple objects in multiple zones. The multi-zone capability and the motion indicator allow use in applications like people detection and tracking, over-shoulder warning, occupancy detection, and storage / parking management.

The sensor enhances the performance of applications such as smart waste-management for tracking full and empty bins. It can also improve floor sensing, cliff prediction, obstacle avoidance, and small-object detection for robots. Further applications include keystone correction in projectors and extended hand tracking for gesture recognition using the STGesture software pack.

The VL53L7CX has native 64-zone (8 x 8) sensing and can measure distance to multiple objects in each zone, up to 3500mm. ST-patented histogram algorithms allow multi-target detection and measurement within the field of view, as well as smudge immunity above 600mm.

The linearity is consistent when measuring distance to objects as close as 20mm.

In low power mode, the sensor consumes just 5.4mW. The VL53L7CX can operate in autonomous mode that allows the host system to power down and wake only when a threshold value is reached. Thresholds include distance to nearest object, signal rate, and detection of motion. The sensor is pin-to-pin and driver compatible with the previous generation device, VL53L5CX.

Design-in support includes the VL53L7CX Expansion board (X-NUCLEO-53L7A1) and a development pack that includes the VL53L7CX board with an additional STM32F401 Nucleo board. The SATEL-VL53L7CX, a small-outline PCB for easy integration and fast prototyping, is also available.

A full set of software is available to make user development easier, including the Ultra Lite Driver, Linux driver, and STGesture code examples. The X-CUBE-TOF1 software pack for fast STM32 microcontroller programming contains application code examples and is compatible with the STM32CubeMX tools.

The VL53L7CX is in production now and available in a 6.4 x 3.0 x 1.6mm miniature optical LGA16 package.

http://www.st.com

> Read More

Rutronik signs Europe and Israel distribution deal with MediaTek

Wed, Jul 05, 2023

Independent distributor, Rutronik, has signed a franchise agreement with fabless semiconductor company, MediaTek to distribute MediaTek’s portfolio of IoT chipsets in Europe and Israel.

Its Genio processors offer fast multi-core performance with high energy efficiency, making them suitable for robotics, industrial automation and IoT applications.

The agreement adds another semiconductor company to Rutronik’s linecard. MediaTek specialises in developing SoCs for mobile, home entertainment, connectivity and IoT products. The Genio series targets brands developing consumer, enterprise, and industrial smart applications at the premium, mid-range and entry levels. Rutronik will help distribute the Genio processors to customers that are designing smart home appliances, industrial automation applications, robotics, POS (point of sale) devices, digital signage, and other IoT applications.

“For us, customer orientation and future viability means offering precisely those products that are currently in demand or will be in demand. MediaTek’s innovative components and technologies add real value to our line card. The symbiosis of high-performance components and our know-how fulfills exactly what our customers expect from us as a distributor,” said Reza Armin Maghdounieh, vice president product marketing, semiconductors at Rutronik.

MediaTek said its Genio series combines quality, robustness and longevity. It offers fast multi-core performance with high energy efficiency, even for computationally intensive applications, said the company. Its development environment allows designers to customise products using Yocto Linux, Ubuntu, and Android and MediaTek’s development kits help to reduce the costs of development in the long term and accelerate time to market.

In addition, Rutronik’s Embedded portfolio offers board-level solutions from manufacturers including Advantech, Kontron, Seco, and VIA in different form factors using the Genio chipsets. For customers, this means a fully comprehensive ecosystem from the product to the design and the solution, said Rutronik.

“We are continuing to see a strong demand for consumer, enterprise, and industrial smart applications, so we look forward to working closely with Rutronik to help brands bring intelligent devices to market faster,” said Richard Lu, vice president of MediaTek’s IoT business unit.

He hoped: “As the largest European distributor, Rutronik will help us to further expand our IoT footprint in the region.”

http://www.rutronik.com
